RadioMaster Bandit Micro ExpressLRS 915MHz RF Module

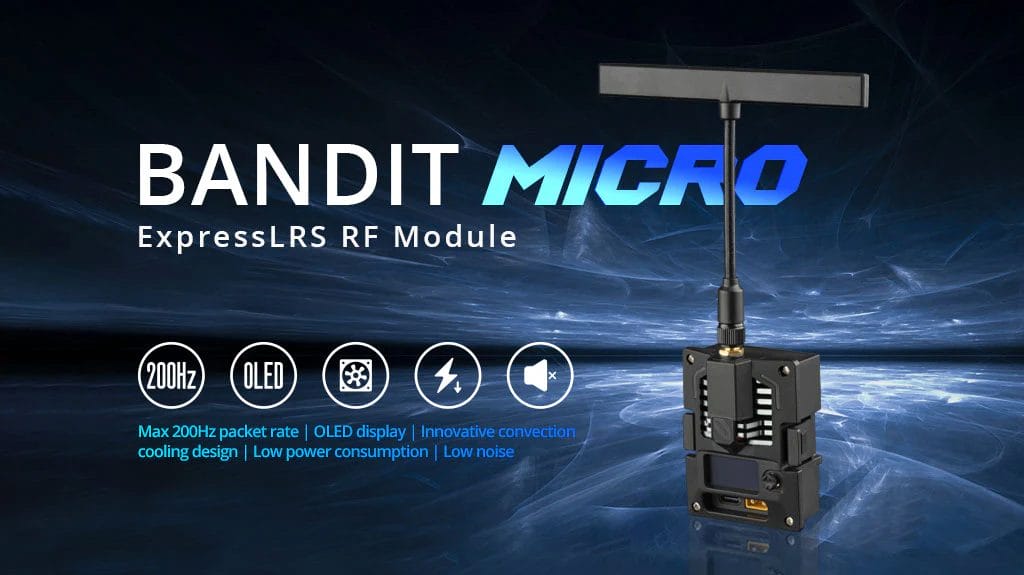

RadioMaster Bandit Micro ExpressLRS 915MHz RF Module

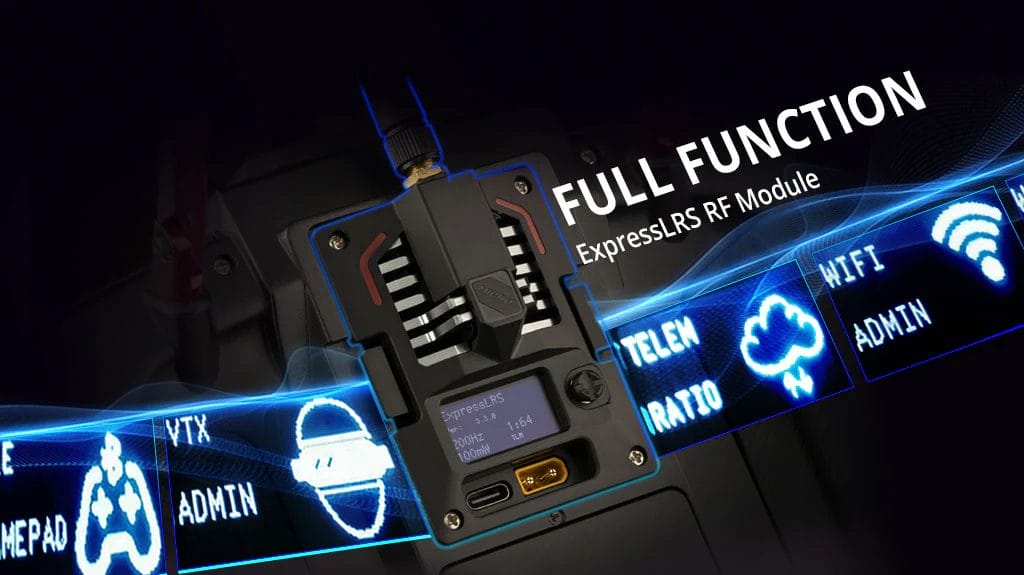

After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Micro ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications.

Features

• Up to 1 Watt power output
• Packet rates up to 200Hz

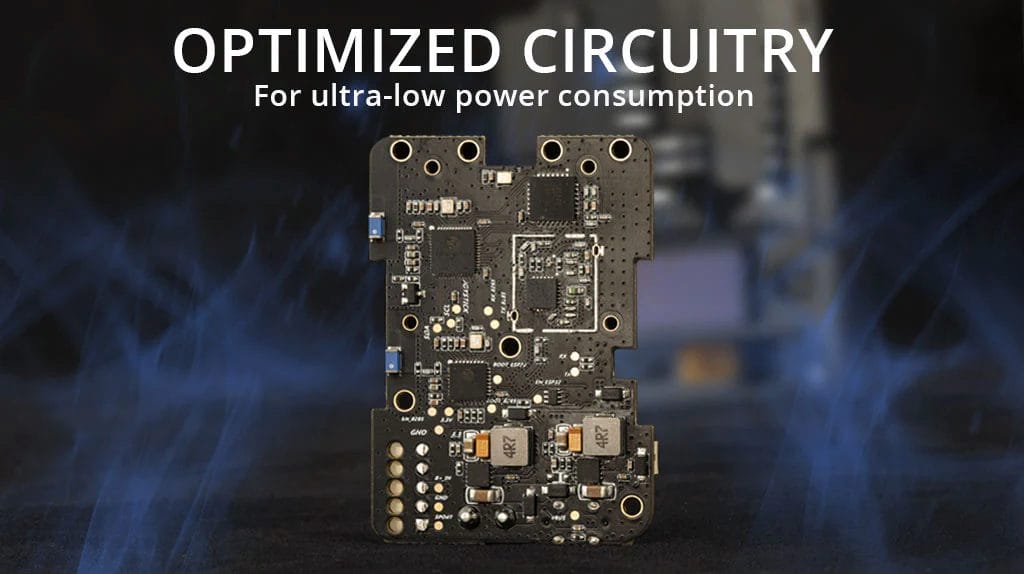

• Optimized circuitry for ultra-low power consumption
• Built-in TCXO oscillator
• Low noise, high comfort
• High contrast OLED display
• Innovative convection cooling design

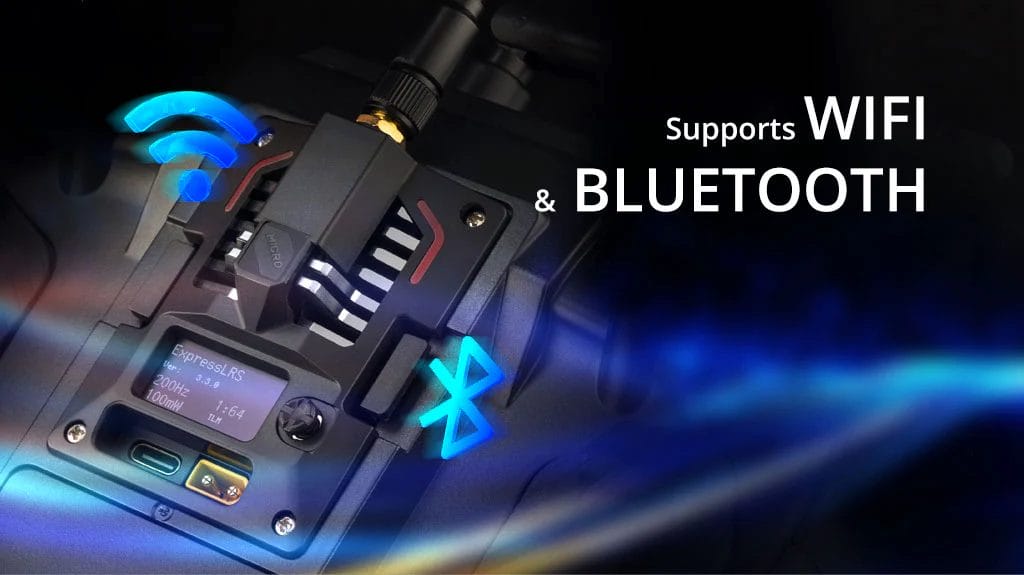

• Wifi and Bluetooth support
• Built-in ExpressLRS backpack
• 5 Directional nav key
• 915/868MHz T Antenna included
• With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio

Specifications

• Item: Bandit Micro ExpressLRS RF Module
• Regulatory Domain: FCC915
• MCU: ESP32(main), ESP8285(aux, as ESP backpack)
• RF Chip: SEMTECH SX1276
• Refresh Rate Min/Max: 25Hz/200Hz
• RF Output Power: 1000mW/30dBm
• Micro standard 5pin connector
• Built-in OLED screen
• XT30 Power Supply Voltage: DC 6V ~ 16.8V
• Weight: 78.0grams (with T antenna)
• Dimension: 64.1*49.6*34.1mm

Keep Your Cool!

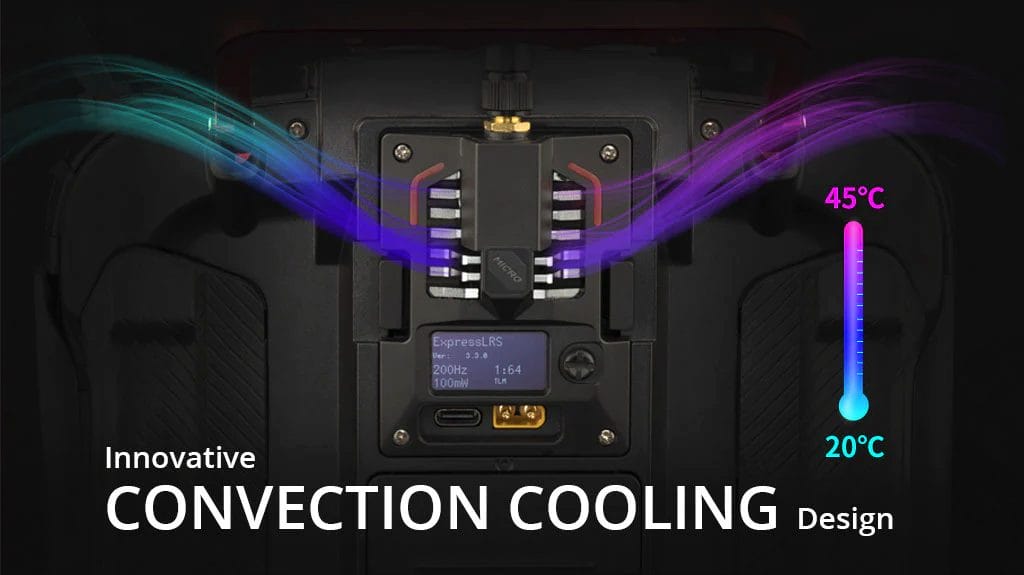

With its innovative convection cooling system and built-in turbo fan, the Bandit Micro ExpressLRS module ensures optimal temperature control and operates with minimal noise.

Intuitive Control at Your Fingertips

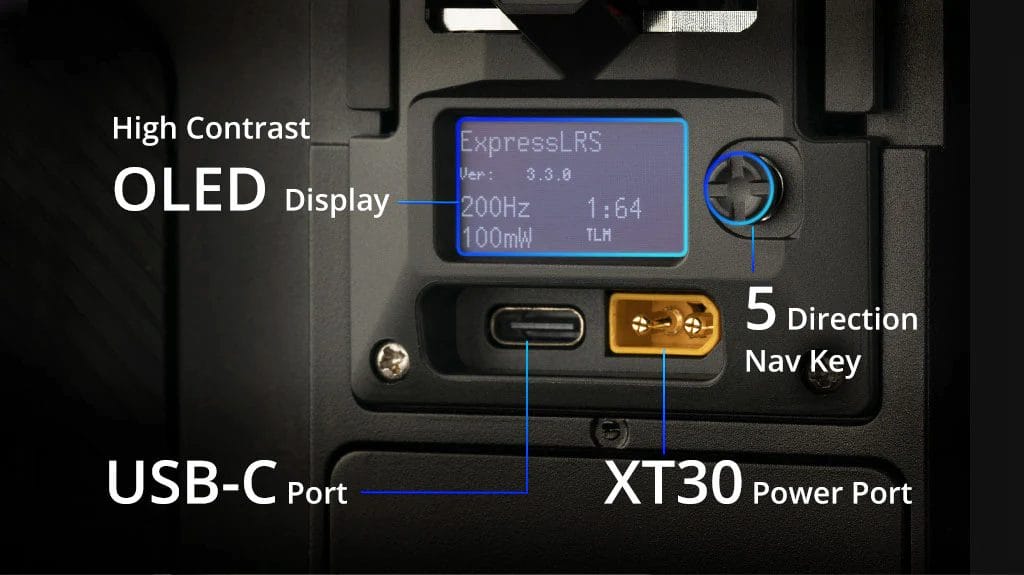

The Bandit Micro ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.

Versatile Antenna Options for Diverse Applications

The Bandit Micro ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.

But wait.. there’s more!

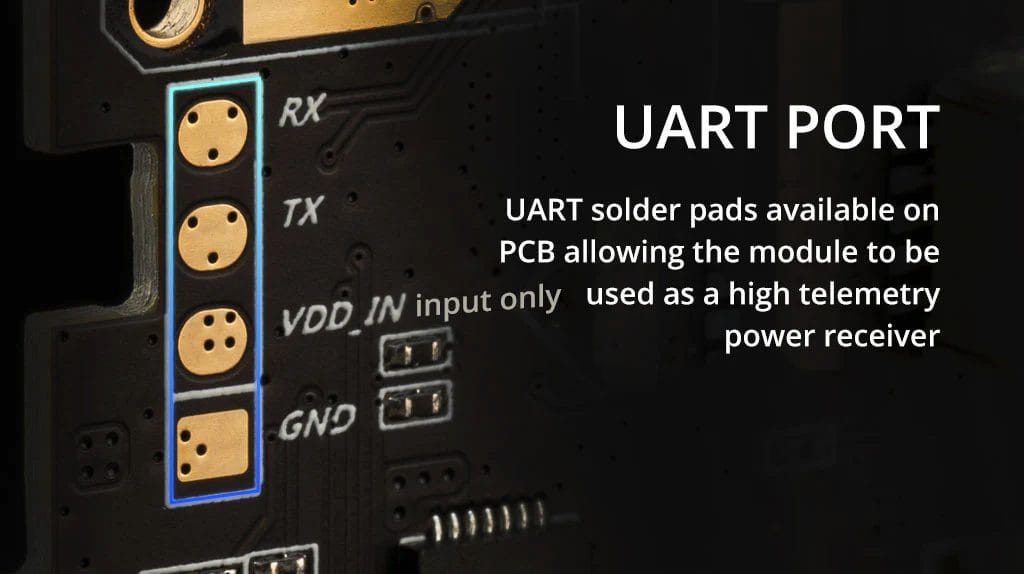

The Bandit Micro has UART solder pads on the PCB and may also be repurposed as a receiver! That’s right, you can use the Bandit Micro as a 1000mW Telemetry receiver for ultra long range flights.

The Ideal Solution for Demanding Applications

Whether you’re an experienced drone enthusiast or a professional UAV operator, the Bandit Micro ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

Includes

• 1 * Bandit Micro ExpressLRS RF Module
• 1 * 900Mhz T Antenna
• 1 * Manual

The Bandit is now compatible with Meshtastic!

Meshtastic® is a project that enables you to use inexpensive LoRa radios as a long range off-grid communication platform in areas without existing or reliable communications infrastructure. This project is 100% community driven and open source!

How it works

Meshtastic utilises LoRa, a long-range radio protocol, which is widely accessible in most regions without the need for additional licenses or certifications, unlike HAM radio operations. These radios are designed to rebroadcast messages they receive, forming a mesh network. This setup ensures that every group member, including those at the furthest distance, can receive messages. Depending on the settings employed, the Meshtastic mesh network can support up to 100 devices concurrently. Additionally, Meshtastic radios can be paired with a single phone, allowing friends and family to send messages directly to your specific radio. It’s important to note that each device is capable of supporting a connection from only one user at a time.
