- High-efficiency cooling system
- Wifi and Bluetooth support
- Packet rates up to F-1000Hz
- Up to 1Watt Power output
- T-antenna included
- With the Nano connector, support Zorro radio
RadioMaster Ranger Nano 2.4GHz ELRS Module
- Item: Ranger Nano Module
- Regulatory Domain: ISM2400
- MCU: ESP32(main), ESP8285(aux,as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz – 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
- Wifi Support: Yes
- Bluetooth support: Yes
- XT30 Power supply voltage: DC 6V – 16.8V
- Weight: 48g (with antenna) / 39g (without antenna)
- Dimension: 136*42*26mm (with T antenna) / 74*42*26mm (without antenna)
RP1
- Item: RP1 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- Antenna: 65mm 2.4ghz T Antenna
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v
- Weight: 2.2g (Including antenna)
- Dimension: 13mm*11mm*3mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
RP2
- Item: RP2 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- Antenna: On Board SMT Antenna
- Maximum receive refresh rate: 500Hz/F1000Hz
- Minimum receiver refresh rate: 25Hz Working voltage: 5v
- Weight: 0.55g (On Board antenna)
- Dimension: 13mm*11mm*7mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF

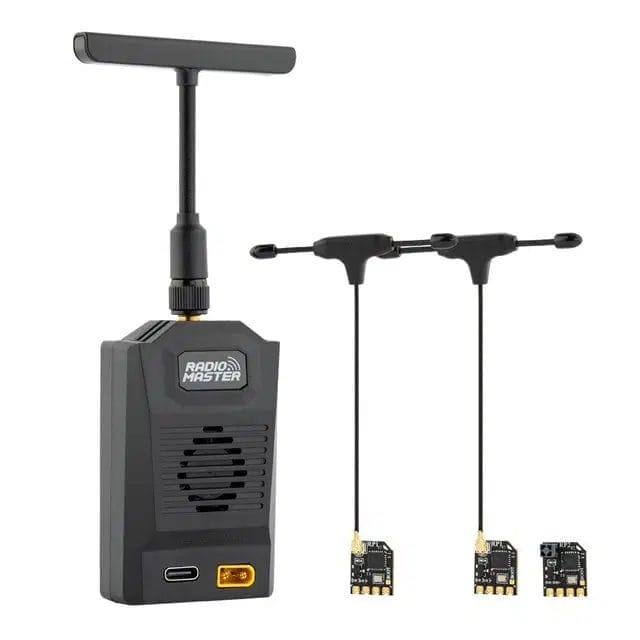

Includes
- 1x Ranger Nano Module
- 1x T-Antenna
- 2x RP1 ExpressLRS 2.4ghz Nano Receiver
- 1x RP2 ExpressLRS 2.4ghz Nano Receiver
